Quadroparker

The invisible system: Independent outside parking with pit in close surrounding areas

This parking system blends smoothly into your landscape because vehicles are stored below ground level and the upper platform can be individually designed according to your local site. Moreover, passengers can easily get in and out of the car since pillars at the upper tier are not required and each platform can be horizontally accessed. Pillars are only necessary for lower tiers. Due to its characteristics, the “Quadroparker” is most appropriate for courtyards, access roads and close surrounding properties.

Product variants


Quadroparker N4902

Independent parking on 2 tiers with pit depth starting from 190 cm and clear height starting from 330 cm.



pit depth

car height lower tier

car height upper tier

form 190 cm 15 cm free
to 260 cm 255 cm free

Quadroparker N4903

In-ground car stacking system for storing cars on 3 tiers and using pillars in the corner. Pit depth can vary between 350 cm and 450 cm depending on the required minimum car height.



pit depth single

pit depth double

car height lower tier

car height middle

car height upper tier

from 350 cm 370 cm 150 cm 150 cm free
to 450 cm 470 cm 200 cm 200 cm free

Quadroparker N4904

Independent parking on 4 tiers. Up to 4 cars can be stored at a single installation and up to 8 cars at a double installation.



pit depth single

car height lower tier

car height middle 1

car height middle 2

car height upper tier

570

160 cm

160 cm

160 cm

free

600 cm

170 cm

170 cm

170 cm

free

630 cm 180 cm 180 cm 180 cm free

Features


  • Independent parking on up to 4 tiers below ground level
  • Width of parking space between 230 cm and 275 cm
  • Platform capacity between 2.0 t and 2.6 t
  • Traversable upper platform meaning it can be driven over
  • Individual design of upper platform (e.g. lawn, wooden floor, pebbles)

Projects


Providing a maximum number of parking lots using minimal space in the courtyard of a building complex in Tel Aviv

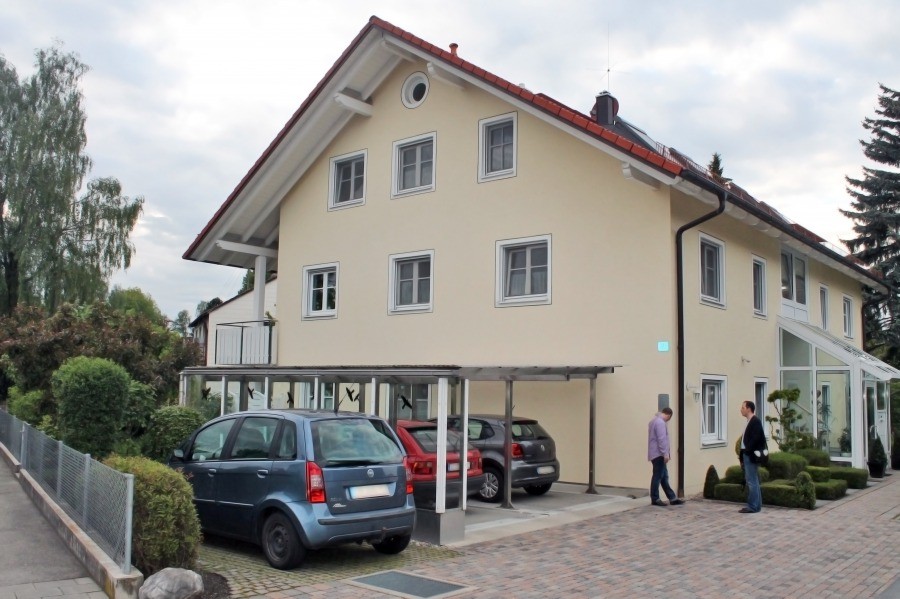

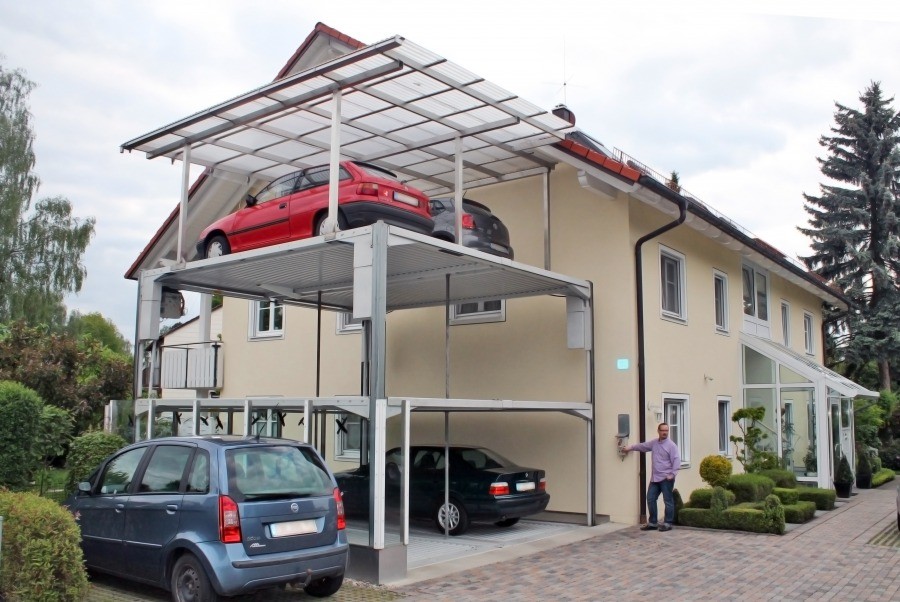

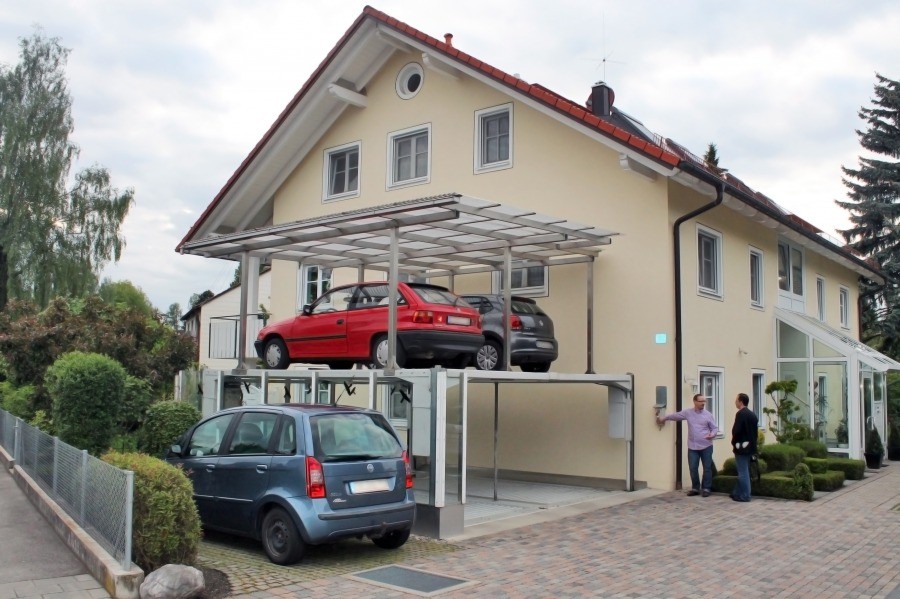

Convenient parking system solution for parking directly at a residential building in Poing near Munich
